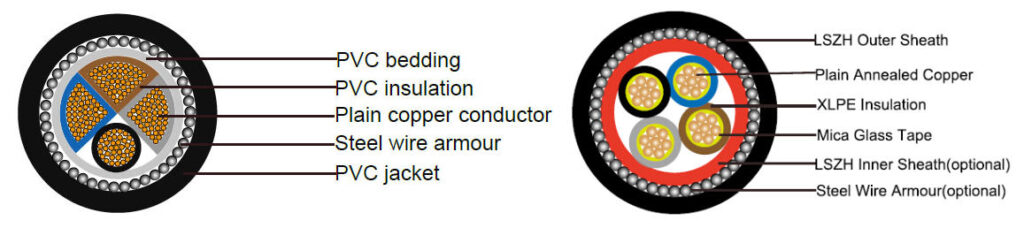

The Description of Structure
| Voltage: | 600/1000V |
| Conductor: | Aluminium/Copper/Plain annealed copper for class 2 |
| Insulation: | XPLE (Cross Linked Polyethylene) |
| No.of Cores: | 1core, 2core, 3core 4core, 5core, 3+1core, 3+2core, 4+1core |
| Cross Section Area: | 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2,400mm2. etc |
| Bedding: | PVC (Polyvinyl Chloride) |
| Armouring: | SWA (Steel Wire Armour)/STA(Steel Tap Armoured) |
| Sheath: | PVC (Polyvinyl Chloride)/LSZH PVC |
| Core Identification: | 1 Core: Brown 2 Cores: Brown, Blue 3 Cores: Brown, Black, Grey or Brown, Blue, Green/Yellow 4 Cores: Brown, Black, Grey, Blue 5 Cores: Brown, Black, Grey, Blue, Green/Yellow |
| International Standards: | IEC 60228, IEC 60502, BS5467 or according to your requirement |
Working:
1.The long time working temperature is at 90℃, suffer short circuit (within 5
seconds), the temperature of core can not higher than 250℃
2.The ambient temperature should not lower than -10℃
3.The laying temperature should not lower than 0℃
4.Single core’s bend radius with no armor should not exceed 20D,single core’s bend
radius with armor should not exceed than 15D,three cores’ bend radius with armor
should not exceed 12D.
Application
1. PVC power(fire resistant) cables suitable for electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1 kV.
Note: the single core armored cables are used for D.C. system only. As for A.C. system, armor layer should be used of non-magnetic material or magnetic isolation measures.
2.It to be used for outdoor and indoor installation in damp and wet locations, in tunnel, in down wells,cable furrow or pipe,underground.
3. the cable size including 16mm armoured cable, 25mm armouredcable ,35-185mm cable.
Parameter of 0.6/1kv swa armoured power cable
| No. Cores | Conductor Cross Section Area (mm²) | Cable Cross Section Area (mm²) | Actual Armoure Section Area (mm²) | Overall Diameter (mm) | Gland Size | Cleat Size | Nominal Weight (kg/km) |
| 2 | 16 | 326.69 | 42 | 20.4 | 25 | 9 | 978 |
| 2 | 25 | 455.94 | 42 | 24.1 | 25 | 10 | 1290 |
| 2 | 35 | 426.17 | 60 | 23.3 | 25 | 10 | 1500 |
| 2 | 50 | 522.53 | 68 | 25.8 | 32 | 11 | 1890 |
| 2 | 70 | 660.19 | 80 | 29 | 32 | 12 | 2450 |
| 2 | 95 | 860.05 | 113 | 33.1 | 40 | 14 | 330 |
| 3 | 16 | 366.25 | 45 | 21.6 | 25 | 10 | 1152 |
| 3 | 25 | 510.45 | 62 | 25.5 | 32 | 11 | 1800 |
| 3 | 35 | 615.44 | 68 | 28 | 32 | 11 | 2230 |
| 3 | 50 | 637.62 | 78 | 28.5 | 32 | 12 | 2490 |
| 3 | 70 | 813.92 | 90 | 32.2 | 40 | 14 | 3290 |
| 3 | 95 | 1074.67 | 128 | 37 | 40 | 16 | 4440 |
| 4 | 16 | 411.66 | 49 | 22.9 | 25 | 11 | 1360 |
| 4 | 25 | 597.98 | 70 | 27.6 | 32 | 12 | 2160 |
| 4 | 35 | 725.47 | 78 | 30.4 | 32 | 12 | 2690 |
| 4 | 50 | 803.84 | 90 | 32 | 32 | 14 | 3130 |
| 4 | 70 | 1115.71 | 131 | 37.7 | 40 | 16 | 4500 |
| 4 | 95 | 1365.03 | 147 | 41.7 | 50 | 18 | 5600 |
| 5 | 16 | 411.66 | 72 | 22.9 | / | 10 | 1400 |
| 5 | 25 | 655.64 | 88 | 28.9 | / | 12 | 2100 |
| 5 | 35 | 808.87 | 100 | 32.1 | / | 14 | 2580 |
