Structure description
Conductor: bare annealed copper flexible conductor for class 5
Insulated: flexible Single or double insulation of rubber
Sheath: flexible PVC/rubber

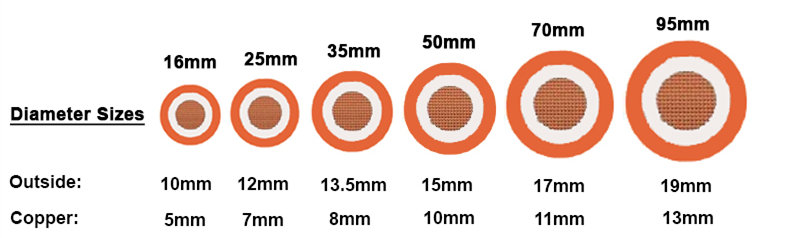

No.Cross-section: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120m2, 150mm2, 185mm2.
ASTM Standard AWG Size: 6awg, 4awg, 2awg, 1awg, 1/0awg, 2/0awg, 3/0awg, 4/0awg, 250awg, 350awg, 500awg.
Color: Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
Standard: IEC60245, ASTM, VDE, DIN etc. according to the other standards required by the customer.
Operation Temperature: –40°C to + 85°C
Bending Radius: 6x overall diameter Special Version Upon request
Color Codes: RD-RED Color Codes; E-Black Color Codes
Application
These cables are used as a connection to welding robots in the automotive industry, transport adn conveyor system shipyards and for manually / automatically operated lines and spot welding. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats, and patrols.
Welding Cable Parameter to ASTM Standard
| (AWG) | Nominal stranding | Nominal overall diameter | Max.conductor resistance at 20℃(Ω/km) | ||
| AWG | mm | inch | mm | ||
| 6 | 259/30 | 259/0.254 | 0.43 | 10.92 | 1.33 |
| 4 | 418/30 | 418/0.254 | 0.475 | 12.07 | 0.84 |
| 2 | 646/30 | 646/0.254 | 0.54 | 13.72 | 0.53 |
| 1 | 836/30 | 836/0.254 | 0.58 | 14.73 | 0.42 |
| 1/0 | 1032/30 | 1032/0.254 | 0.615 | 15.62 | 0.33 |
| 2/0 | 1290/30 | 1290/0.254 | 0.655 | 16.64 | 0.26 |
| 3/0 | 1672/30 | 1672/0.254 | 0.72 | 18.29 | 0.21 |
| 4/0 | 2066/30 | 2066/0.254 | 0.78 | 19.81 | 0.1 |
| struction | Conductor Resistance | Current Carrying Capacity | Operating Capacity | |
| 20℃ | Current Rating For Single Cycle Operatuon Over A Maximum Period Of 5 Minutes (Amps) | |||
| No.xmm2 | Ω/km | 1 | 0.85 | 0.6 |
| 10 | ≤1.91 | 100 | 103 | 108 |
| 16 | ≤1.21 | 135 | 145 | 175 |
| 25 | ≤0.78 | 180 | 195 | 230 |
| 35 | ≤0.554 | 225 | 245 | 290 |
| 50 | ≤0.386 | 285 | 305 | 365 |
| 70 | ≤0.272 | 355 | 385 | 460 |
| 95 | ≤0.206 | 430 | 470 | 560 |
| 120 | ≤0.161 | 500 | 540 | 650 |
| 150 | ≤0.129 | 580 | 630 | 750 |
